Standard Hand Pallet Jacks
The Lift-Rite Titan Series standard hand pallet jacks feature a robust hydraulic pump design, cast in one piece to keep oil in the pump and off your floor. The lowering valve cartridge provides superior operator lowering control. And a high quality thrust load ball bearing and plate equipped with grease fittings makes load steering easier than ever before. With configurations available to suit a wide range of applications, there's a Titan Series pallet jack designed to keep you moving.
- Capacity: 5,500 lbs
- Fork Length: 42 inches
- Fork Width: 7.00 inches
- Frame Width: 20.50 inches
- Low Height: 3.00 inches
- Elevated Height: 7.75 inches
- Wheel Diameter: 7.00 inches
- Wheel Type: Nylon
- Roller Diameter: 3.00 inches
- Roller Type: Nylon
- Weight: 147 lbs

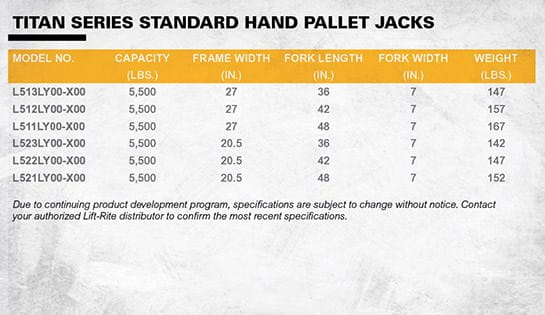

Titan Series Technical Information & Product Resources
Debris Diverter for Hand Pallet Trucks
Divert Debris Away From Your Wheels
This unique attachment diverts items away from the steer tires on a hand pallet truck, allowing smoother, easier, more reliable travel in a variety of environments.
Easier Steering, Smoother Travel
By preventing foreign objects from getting under the steer tires of hand pallet trucks, the Debris Diverter delivers more consistent, reliable travel for easier operation and more precise, predictable travel.
Truer Steering For Your Fleet
A Lift-Rite exclusive, the attachment is available on most new Lift-Rite models or as a retrofit for virtually any pallet jack in your fleet. It quickly and easily attaches to most brands of hand pallet trucks.
Titan L5 Series Pallet Jack Dimensions
Titan Series Standard Hand Pallet Trucks Product Manual Archive
Begin Date End Date Manual Type
Product Family 12/1/2007 2/21/2010
LC Series 12/1/2007 2/21/2010
LC Series: LCR and LCS 2/22/2010 6/28/2012
LC Series 2/22/2010 6/28/2012
LC Series: LCR and LCS
Operators and Parts Manual
LCR and LCS Series
10/7/2013 8/4/2015 Operators and Parts Manual
LCR, LCS and L5 Series
8/5/2015 Owner’s Manual, Operating Instructions Manual, and Replacement Parts Manual LCR, LCS and L5 Series
Please complete the contact form below to request more information about the Titan L5 Series pallet trucks.
