Forks
1 3/4" Ultra Low Profile Fork >Forks -
4-Way Chassis
4-Way chassis designed for 4 direction entry of applicable pallets >4-Way Chassis -
Handle
Ergonomic Loop Handle >Handle -
Pump
One-piece leak-proof cast hydraulic pump >Pump -
Warranty
Two (2) year hydraulic pump warranty >Warranty
Save Time and Energy With 4-Way Trucks
The Lift-Rite UW Series Ultra Low 4 Way Pallet Jack allows operators to handle 4-way entry pallets easily in all four directions for maximization of warehouse space and trailer load density. A unique design enable forks to fit into the side openings of four-way pallets for greater versatility in your application. In addition, the ergonomic handle provides convenient access to lift, lower and neutral. Lift-Rite 4 way pallet jack models are ideal for operations where space is limited.

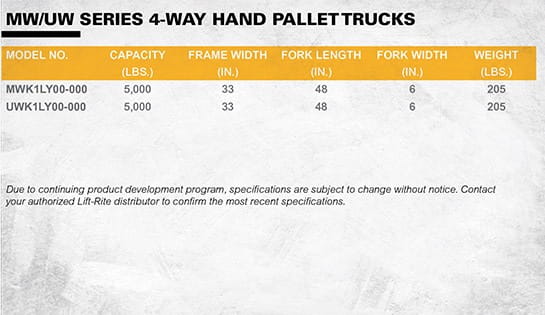

- Capacity: 5,000 lbs
- Fork Length: 48 inches
- Frame Width: 33.00 inches
- Fork Width: 6.00 inches
- Low Height: 1.75 inches
- Raised Height: 6.50 inches
- Wheel Diameter: 7.00 inches
- Wheel Type: Nylon
- Roller Diameter: 1.75 inches
- Roller Type: Steel
- Weight: 205 lbs
Technical Information & Product Resources
Debris Diverter for Hand Pallet Trucks
-
Divert Debris Away From Your Wheels
This unique attachment diverts items away from the steer tires on a hand pallet truck, allowing smoother, easier, more reliable travel in a variety of environments.
-
Easier Steering, Smoother Travel
By preventing foreign objects from getting under the steer tires of hand pallet trucks, the Debris Diverter delivers more consistent, reliable travel for easier operation and more precise, predictable travel.
-
Truer Steering For Your Fleet
A Lift-Rite exclusive, the attachment is available on most new Lift-Rite models or as a retrofit for virtually any pallet jack in your fleet. It quickly and easily attaches to most brands of hand pallet trucks.
-
4-Way Pallet Truck Sell Sheets
-
Lift-Rite Product Line Guide
-
Ultra Low 4-way Trucks Product Manual Archive
Begin Date End Date Manual Type
Product Family 12/1/2007 2/21/2010
Operators Manual
LC Series 12/1/2007 2/21/2010
Parts Manual
LC Series: LCM/LCU 2/22/2010 6/28/2012
Operators Manual
LC Series 2/22/2010 6/28/2012
Parts Manual
LC Series: LCM/LCU
6/29/2012 10/6/2013
Operators and Parts Manual
LCM/LCU Series
10/7/2013 8/5/2015 Operators and Parts Manual
LCM/LCU, MW and UW Series 8/6/2015 Owner’s Manual, Operating Instructions Manual, and Replacement Parts Manual LCM/LCU, MW and UW Series
