Down With Hard Work.

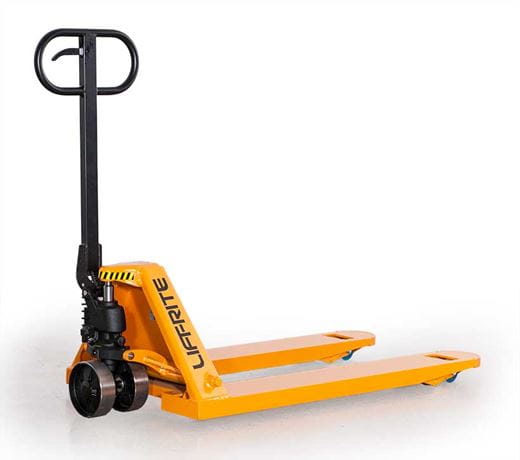

The Lift-Rite Titan C8 Series heavy duty pallet jack delivers our highest load capacity and is built tough. Simplicity and maneuverability make Lift-Rite manual pallet jack models the logical choice for use every day, throughout your operation. Our heavy duty pallet jacks are tough enough to stand up to the most demanding applications, year in and year out. The C8 Series pallet jack features an extended load capacity of 8,000 pounds, which makes it ideal for high throughput applications, and a three-position control lever for ease of use.

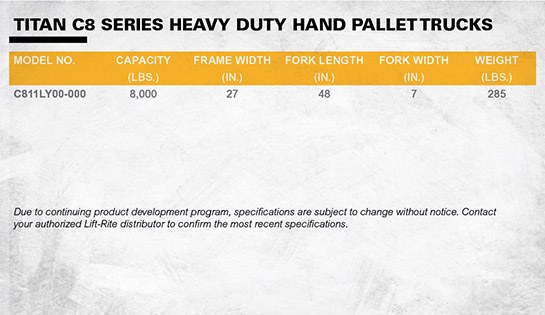

- Capacity: 8,000 lbs
- Fork Length: 48 inches
- Frame Width: 27.00 inches
- Fork Width: 7.00 inches
- Low Height: 3.25 inches

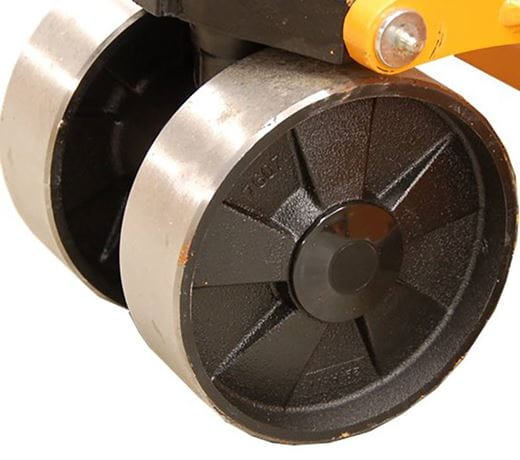

- Wheel Type: Steel
- Wheel Diameter: 7.00 inches
- Raised Height: 7.75 inches
- Roller Diameter: 3.00 inches
- Roller Type: Steel
- Weight: 285 lbs
Technical Information & Product Resources

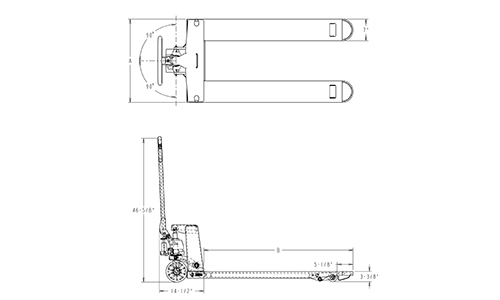

Titan Heavy Duty Pallet Truck Dimensions
-
Heavy Duty Pallet Truck Brochure
-
Lift-Rite Product Line Guide
Titan C8 Heavy Duty Truck Product Manual Archive
| Begin Date | End Date | Manual Type |
Product Family |
| 8/16/2012 | 10/6/2013 |
Operators/Parts Manual | LCS80 Heavy Duty |
| 10/7/2013 | 8/5/2015 | Operators/Parts Manual |
LCS80/C8 Heavy Duty |
| 8/5/2015 | Owner’s Manual, Operating Instructions Manual, and Replacement Parts Manual | LCS80 (C8) Heavy Duty |
