Does the Groundwork.
To help maximize customers’ warehouse space, Lift-Rite offers low profile manual pallet jack models suitable for pallets or skids with low clearance openings. Our Titan M5 low profile pallet jack series is rated for a 5,000 lb. maximum load capacity and feature a one‐piece, leak‐proof cast hydraulic pump for reliable performance and convenient service.

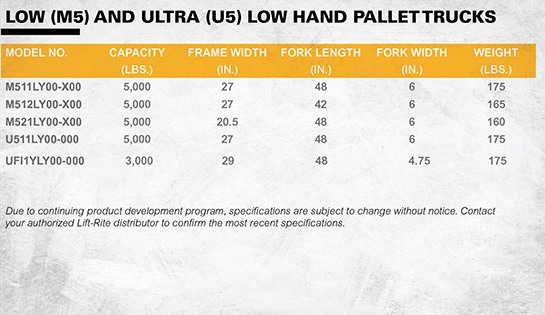

- Capacity: 5,000 lbs
- Fork Length: 48 inches
- Frame Width: 27.00 inches
- Fork Width: 6.00 inches
- Low Height: 2.00 inches
- Raised Height: 6.75 inches
- Wheel Diameter: 7.00 inches
- Wheel Type: Nylon
- Roller Diameter: 2.00 inches
- Roller Type: Nylon
- Weight: 175 lbs
Technical Information & Product Resources
Debris Diverter for Hand Pallet Trucks
-
Divert Debris Away From Your Wheels
This unique attachment diverts items away from the steer tires on a hand pallet truck, allowing smoother, easier, more reliable travel in a variety of environments.
-
Easier Steering, Smoother Travel
By preventing foreign objects from getting under the steer tires of hand pallet trucks, the Debris Diverter delivers more consistent, reliable travel for easier operation and more precise, predictable travel.
-
Truer Steering For Your Fleet
A Lift-Rite exclusive, the attachment is available on most new Lift-Rite models or as a retrofit for virtually any pallet jack in your fleet. It quickly and easily attaches to most brands of hand pallet trucks.

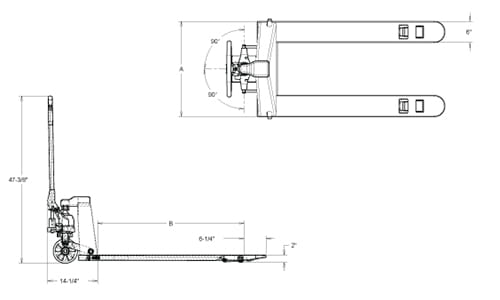

Low Profile Pallet Jack Dimensions
-
Low Profile Pallet Truck Sell Sheet
-
Lift-Rite Product Line Guide
Low Profile Pallet Jacks Product Manual Archive
| Begin Date | End Date | Manual Type |
Product Family |
| 1/1/2002 | 12/31/2004 |
Operator/Parts Manual |
Model L50M |
| 1/1/2005 | 9/20/2012 |
Operator/Parts Manual |
Model L50M |
| 12/1/2007 | 2/21/2010 |
Operators Manual |
Titan LCM/LCU Series |
| 4/3/2008 | 2/21/2010 | Parts Manual |
Titan LCM/LCU Series |
| 2/22/2010 | 6/28/2012 |
Operators Manual |
Titan LCM/LCU Series |
| 2/22/2010 |
6/28/2012 |
Parts Manual |
Titan LCM/LCU Series |
| 6/22/2012 |
10/6/2013 |
Operators and Parts Manual |
Titan LCM/LCU and M5 Series |
| 10/7/2013 |
8/4/2015 | Operators and Parts Manual | Titan LCM/LCU and M5 Series |
| 8/5/2015 | Owner’s Manual, Operating Instructions Manual, and Replacement Parts Manual | Titan LCM/LCU and M5 Series |
