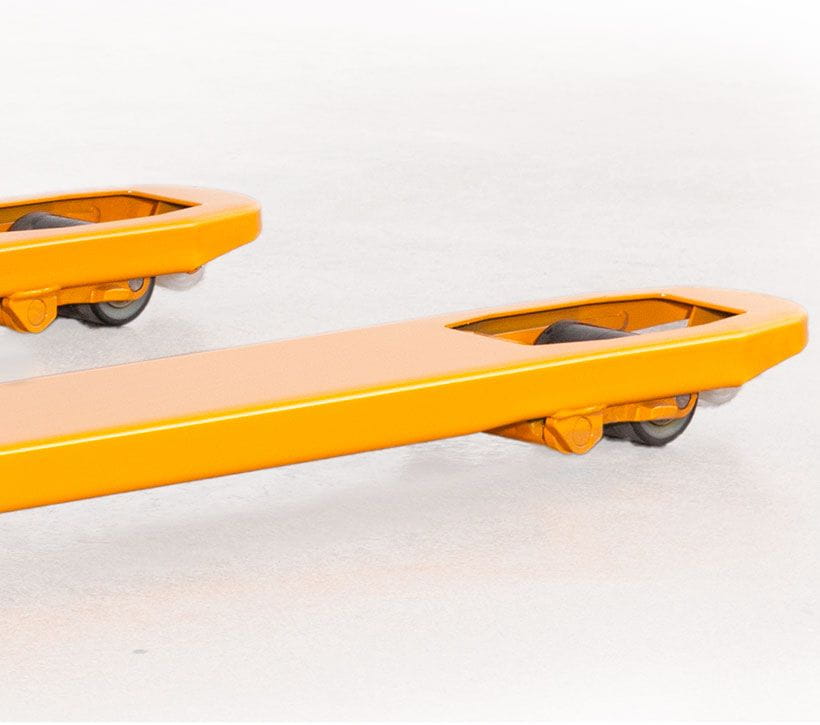

Fork Paint
Durable powder coat paint finish >Fork Paint -
Pump to Propel
Pump the Handle to Propell the Load Forward or Reverse >Pump to Propel -

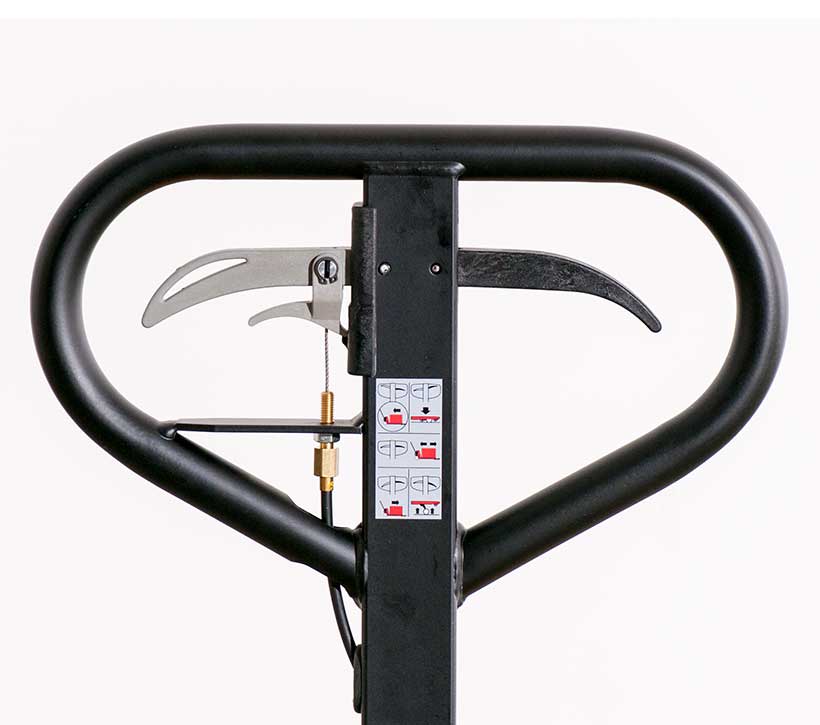

Handle
Ergonomic tear-drop handle design with easy-to-use pumping motion to propel >Handle -

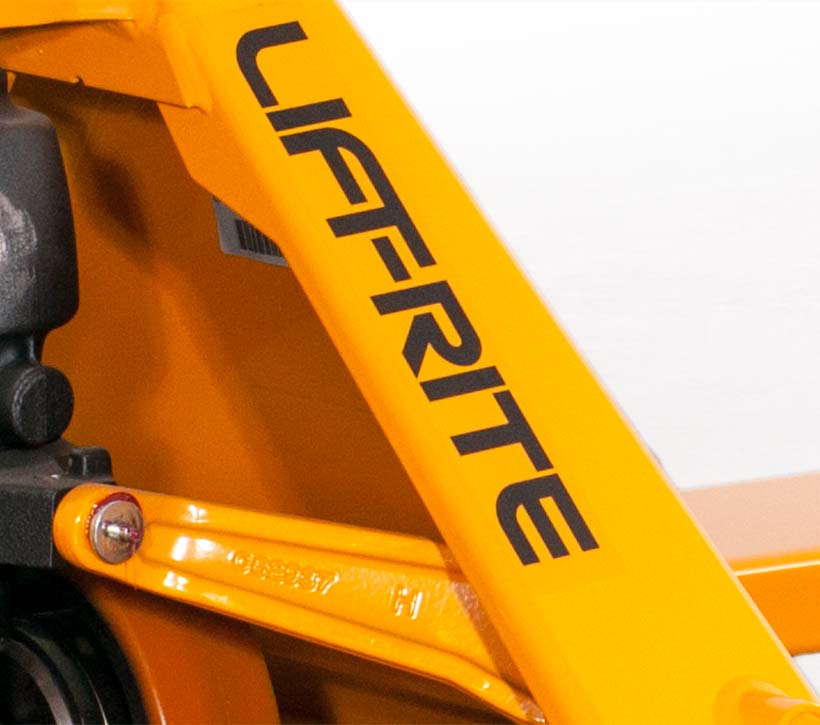

Maintenance Points
10 grease fittings for convenient maintenance >Maintenance Points -

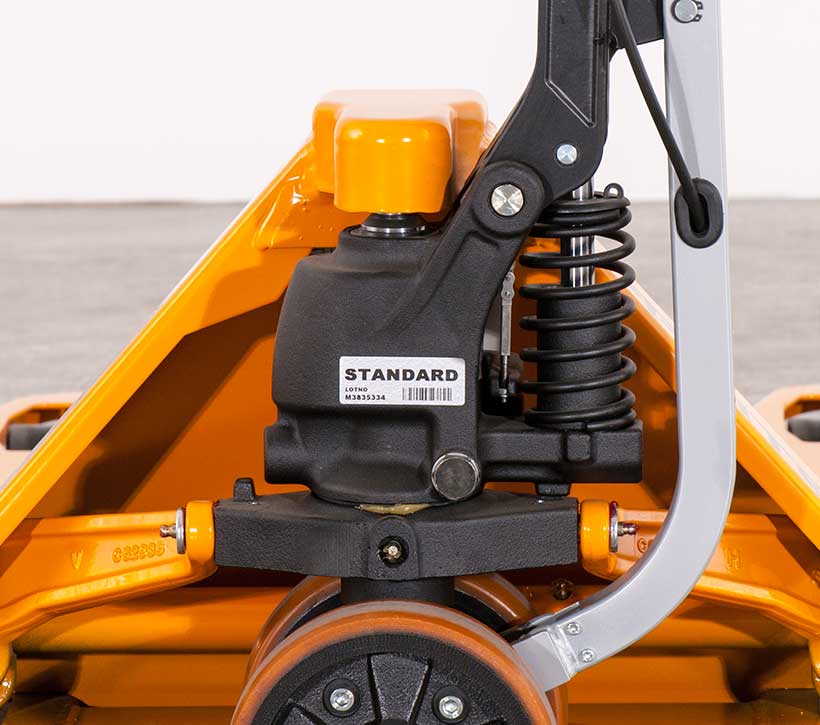

Pump
One-piece leak-proof cast hydraulic pump >Pump
Outmuscles Heavy Loads From the Start.
The Lift-Rite ST Series Power Start Assist pallet jack features Power-Start-Technology, which enables this unique hand truck to easily overcome initial inertia of a load, with a simple design that reduces strain on the operator without the use of batteries or motors. By simply pumping the towbar up or down, the operator can easily maneuver the Lift-Rite start assist manual pallet jack in any direction, even when carrying the maximum load.

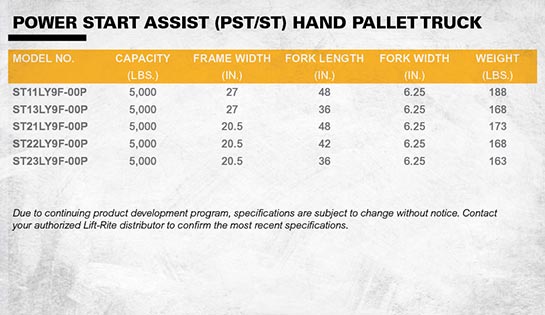

- Capacity: 5,000 lbs
- Fork Length: 36 inches
- Frame Width: 20.50 inches
- Fork Width: 6.25 inches
- Low Height: 2.90 inches
- Raised Height: 7.65 inches

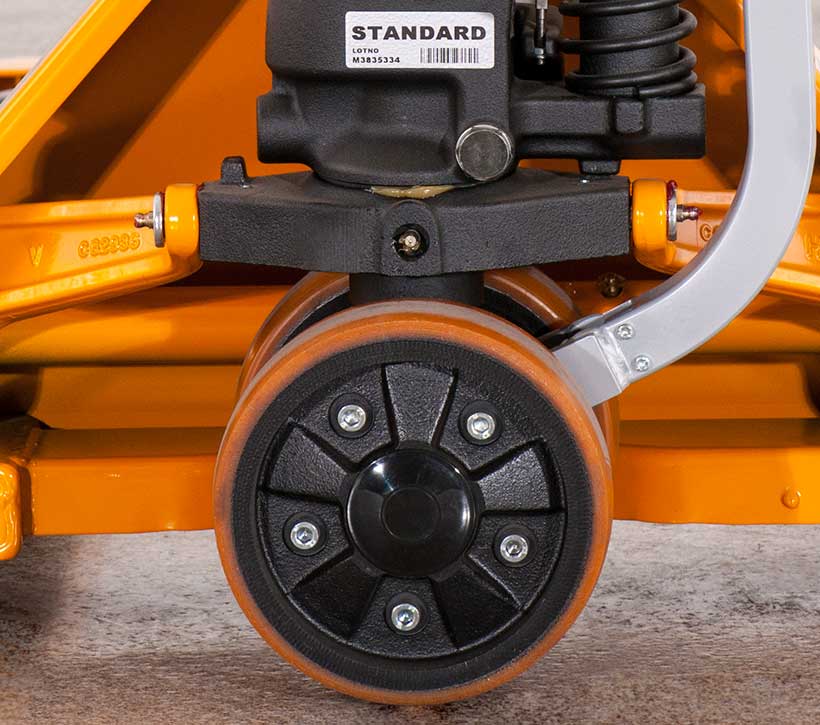

- Wheel Diameter: 7.00 inches
- Wheel Type: Powerthane
- Roller Diameter: 3.00 inches
- Roller Type: Poly
- Weight: 163 lbs
Technical Information & Product Resources

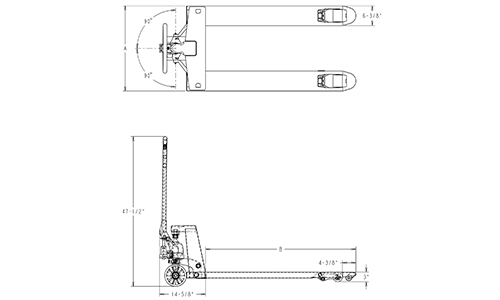

PST23 Start Assist Pallet Truck Dimensions
-
Power Start Assist Trucks Sell Sheet
-
Lift-Rite Product Line Guide
-
Power Start Assist (ST Series) Product Manual Archive
Begin Date End Date Manual Type
Product Family 4/1/2004
8/11/2008 PST 5000 - Operator/Parts Manual PST 5000 4/4/2007 8/16/2010 PST 5000 - Parts Manual PST 5000 4/4/2007
8/16/2010
PST 5000 - Operators Manual PST 5000
8/17/2010 5/3/2015 PST 5000 - Operator/Parts Manual
PST23 5/4/2015 9/13/2018 Operators and Service Manual PST23 9/13/2018 Owner's & Operator's Manual PST23
