Forks
Durable powder coat paint finish >Forks -
Handle
Ergonomic Loop Handle >Handle -
Pump
One-piece leak-proof cast hydraulic pump >Pump -
Warranty
Two (2) year hydraulic pump warranty >Warranty -
Wheels
High Quality Non-Marking Wheels and Rollers >Wheels
Fear No Task.
LiftRite’s C5 Unique Size Series pallet trucks offer superior durability as well as flexibility to allow you to customize the truck to your application. Choose from varying frame widths, fork lengths and capacities to suit your unique handling needs, including narrow pallet jack, double pallet jack and triple pallet jack configurations. The reinforced fork design provides the strength and rigidity for handling custom length pallets and skids, with capacities up to 5,500 lbs. The Lift-Rite manual pallet jack C5 Series assures a perfect fit in unique environments when handling non-standard pallets and products.
- Capacity: 5,500 lbs
- Fork Length: 36 inches
- Frame Width: 18.00 inches
- Fork Width: 6.00 inches
- Low Height: 3.00 inches
- Raised Height: 7.75 inches
- Wheel Diameter: 7.00 inches
- Wheel Type: Nylon
- Roller Diameter: 3.00 inches
- Roller Type: Nylon
- Weight: 140 lbs
Technical Information & Product Resources
Debris Diverter for Hand Pallet Trucks
-
Divert Debris Away From Your Wheels
This unique attachment diverts items away from the steer tires on a hand pallet truck, allowing smoother, easier, more reliable travel in a variety of environments.
-
Easier Steering, Smoother Travel
By preventing foreign objects from getting under the steer tires of hand pallet trucks, the Debris Diverter delivers more consistent, reliable travel for easier operation and more precise, predictable travel.
-
Truer Steering For Your Fleet
A Lift-Rite exclusive, the attachment is available on most new Lift-Rite models or as a retrofit for virtually any pallet jack in your fleet. It quickly and easily attaches to most brands of hand pallet trucks.

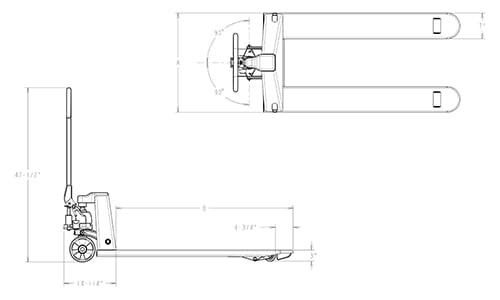

Unique Size C5 Series Pallet Truck Dimensions
-
Unique Size C5 Series Sell Sheet
-
Lift-Rite Product Line Guide
-
Unique Size C5 Series Product Manual Archive
Begin Date End Date Manual Type
Product Family 12/1/2007 2/21/2010
Operators Manual
LC Series 12/1/2007 2/21/2010
Parts Manual
LC Series: LCR and LCS 2/22/2010 6/28/2012
Operators Manual
LC Series 2/22/2010 6/28/2012
Parts Manual
LC Series: LCR and LCS
6/29/2012 10/6/2013
Operators and Parts Manual
LCR and LCS Series
10/7/2013 8/4/2015 Operators and Parts Manual
LCR (L5) and LCS (C5) Series
8/5/2015 Owner’s Manual, Operating Instructions Manual, and Replacement Parts Manual LCR (L5) and LCS (C5) Series
